An accurately labeled electric panel is an essential safety as well as a requirement for smooth operations. It intimidates numerous homeowners, although it is far less complicated than one might realize. By pursuing a methodical approach, it is possible for you to craft a smooth-working and easy-to-read circuit guide that will do justice to your time as well as to incoming homeowners. Should you not be confident of working on this single-handedly, consider reaching out to an electrician in Northampton for professional guidance.
Why a Labeled Electrical Panel Matters
A properly labeled electrical panel is more than just an organizational tool—its a safety feature. Having the ability to identify and kill the proper breaker in the event of an emergency can save serious injury or damage. For instance, in the case of a power surge or electrical malfunction, knowing which breaker serves what main system of your HVAC or kitchen appliances can prove to be lifesaving. Additionally, a labeled panel makes it easier to conduct home improvement, time-saving and potentially saving money on labor in hiring an electrician.
Another significant advantage is compliance with safety codes. The National Electrical Code (NEC) requires that circuit breakers be labeled simply and accurately. NEC Article 408.4(A) requires that all circuits be labeled in a manner that is “clear, evident, and specific.” Proper labeling safeguards your house against non-compliance with these regulations, which can be especially useful if you ever intend to sell your house in the future.

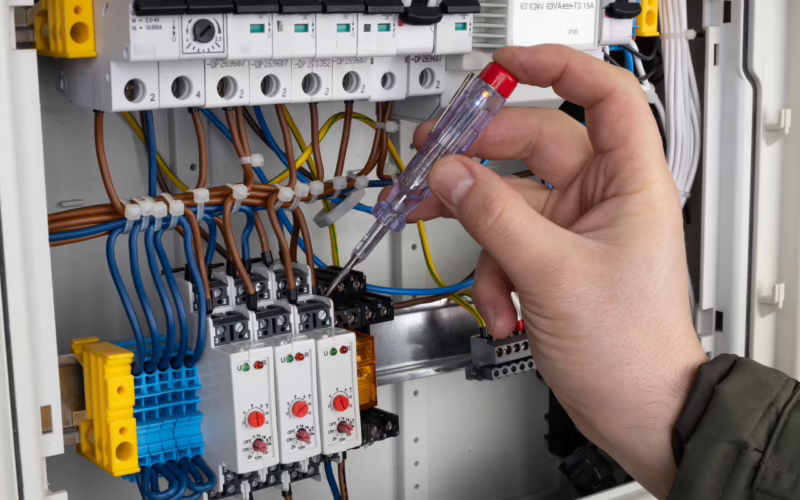

How to Label Your Electrical Panel: A Step-by-Step Guide
Labeling your electrical panel doesn’t have to be overwhelming. With a bit of preparation and the right tools, you can efficiently map out your home’s circuits. If you have any concerns, consulting an expert in electrical repairs in Lehigh County can help ensure accuracy and safety.
Tools and Materials Needed:
- Circuit detector
- Label maker or durable printable labels
- Small appliances (lamps, radio) or an electrical tester
- Pen and paper to jot down findings
- Cell phone for easy communication if working with a partner
Step 1: Prioritize Safety
Prior to starting, turn off the master breaker so you’re safe while working. This prevents accidental shock during circuit testing. In the event you’re working on an advanced panel with specialized circuits for large appliances like a water heater or HVAC, write them down before proceeding.
Step 2: Use the Buddy System for Testing
Having a partner can make the labeling process much smoother. One person stays at the panel while the other moves from room to room, testing outlets and fixtures. Here’s how it works:
- Turn on all the lights and plug in small appliances in one room.
- Your partner at the panel flips breakers one at a time until the lights or appliances turn off.
- Make a note of which breaker corresponds to which room or device.
- Repeat the process for every room, including outdoor outlets, basement circuits, and major appliances.
Step 3: Using a Circuit Detector for a One-Person Job
If you are attempting it yourself, a circuit detector will make it very easy. Plug the transmitter into an outlet and then sweep over each breaker with the receiver. The detector will notify you when it detects the correct circuit. This is a great method to use for complex electrical systems in homes.
Step 4: Create Clear, Descriptive Labels
After determining each circuit, label them using clear descriptions. Rather than general names such as “Living Room,” name them “Living Room – Outlets” and “Living Room – Ceiling Lights.” Labels that are waterproof and smudge-proof are best for durability. Do not use abbreviations that could be confusing down the road.
Example Circuit Labeling:
- Kitchen Refrigerator
- Master Bedroom Receptacles
- Bathroom GFCI Outlet
- Outdoor Receptacles
- Hot Water Heater
Step 5: Apply Labels Neatly and Document Your Work
Put each label beside the corresponding breaker, where it can be easily read. If your panel has a circuit directory inside the door, complete it as well. Take a clear photo of your completed panel and retain a digital copy for future reference. A handwritten backup list is also convenient in case labels get worn out over time.
The Long-Term Benefits of a Labeled Panel
A clear electrical panel label is an investment in your home’s function and safety. It makes repair simpler, safer from unintended cutoffs, and much less of a hassle for anyone who will be doing electrical work in the future. Homeowners, electricians, and potential buyers will appreciate the clarity and order.
By taking the time to properly label your panel, you’re ensuring a safer and more efficient home. If you need assistance or prefer professional help, contact GB Electric for expert electrical repairs. Our team is ready to help with any electrical needs, ensuring your home’s system is safe, efficient, and up to code.
